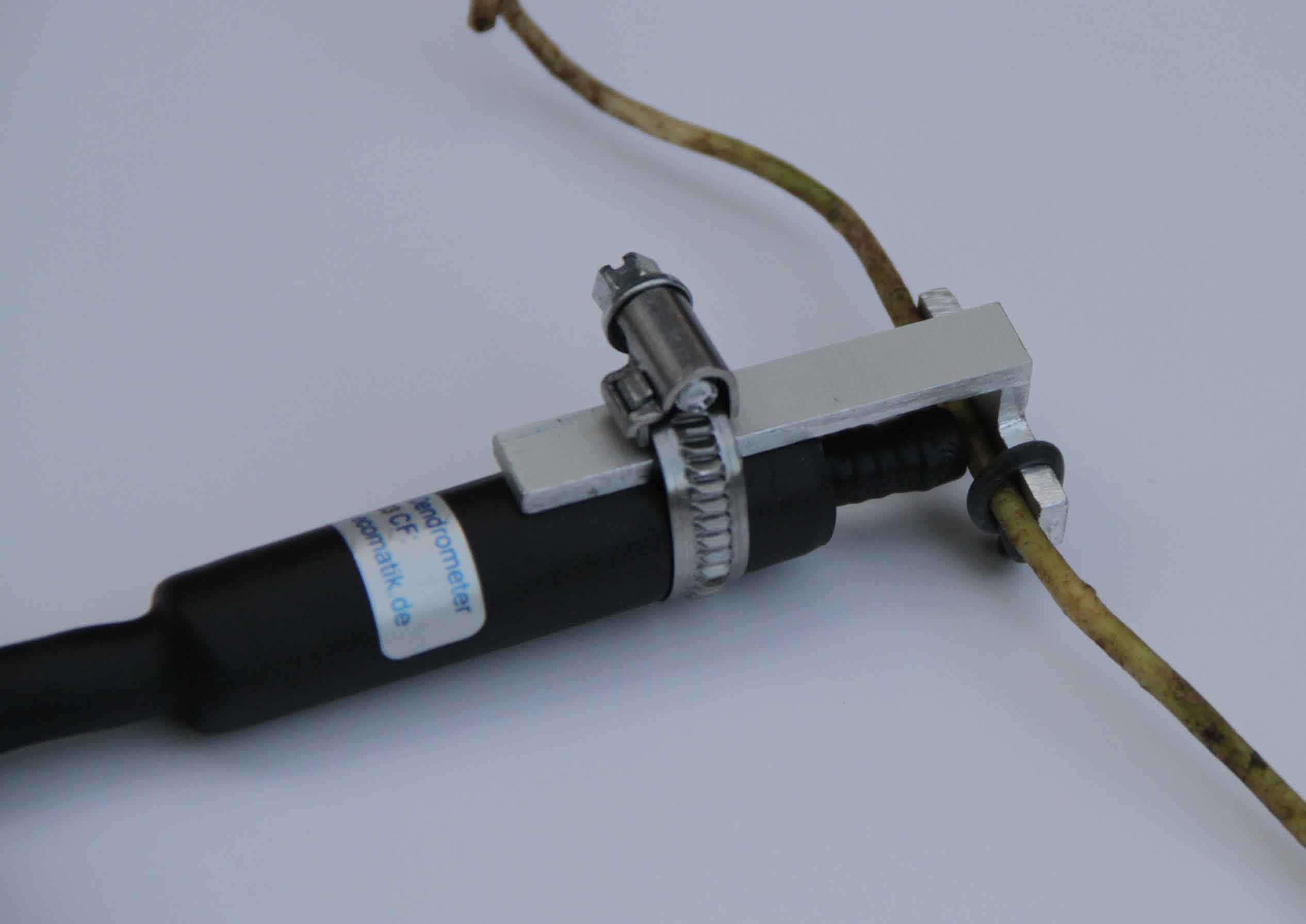

Root and aquatic plant dendrometer (DRO)

The DRO Dendrometers is designed for continuous measurement of roots, aquatic plants and creepers. The device is waterproof. The sensor rod is protected with soft, light resistant rubber. The metal clamp protects the sensor from excessive pressure from top soil. The unit has specific weight similar to water, when used under water therefore has no impact on plants. It is easy to install and maintenance free. By more than 1 year test, it has proven itself well.

Advantages

Waterproof, suitable for use in/on the soil and under  water

Low pressure at the measuring point

Ideal for long-term measurement with less manpower

Disadvantages

Only for diameter smaller than 2 cm



Delivery

Complete with 5 m cables



Options / Ordering Information

Cable extension (please specify in meters)

Data Logger



Technical specifications

Name Root and aquatic Plant Dendrometer (DRO)
Suitable for diameter 0-2 cm
Range of the sensor 11 mm
Accuracy ±1.5 µm ± 0,12% (CR1000 Logger)
Resolution 0.2-2.6 µm (dependent on used data logger)
Linearity 1%
Thermal expansion coefficient of the sensor <0,1 µm/K
Operating conditions Air temperature: -30 - 40° C, air humidity: 0-100%
Root Dendrometer DRO
DRO
