Fruit and Vegetable Dendrometer (DF)

Fruit and Vegetable Dendrometer is the special version for circular targets. The fruit in the measuring frame is firmly fixed without affecting its growth. The frame bears the weight of the target.


Advantages

Suitable for diameter between 0 and 11 cm (other size on request)

Fruits do not have to bear the weight of the dendrometers

Measures diameter changes

No Injury to fruits

Minimal load on the target

Stability against wind, snow, falling small branches and small fruits



Disadvantages

Not suitable for very soft fruit and vegetables (such as ripe tomatoes)



Delivery

Complete with 5 m cable

Fixing materials and installation tools (wrench)



Options / Ordering Information

Cable extension (please specify in meters)

If necessary, different frame size

Data Logger



Technical specifications

Name Fruit and vegetable Dendrometer (DF)
Suitable for fruit size Diameter 0-11 cm (extendable)
Range of the sensor 15 mm
Accuracy ±2 µm ± 0,12% (CR1000 Logger)
Resolution 0.3-3.6 µm (dependent on used data logger)
Linearity 2%
Thermal expansion coefficient of the sensor <0,1 µm/K
Operating conditions Air temperature: -30 - 40° C, air humidity: 0-100%

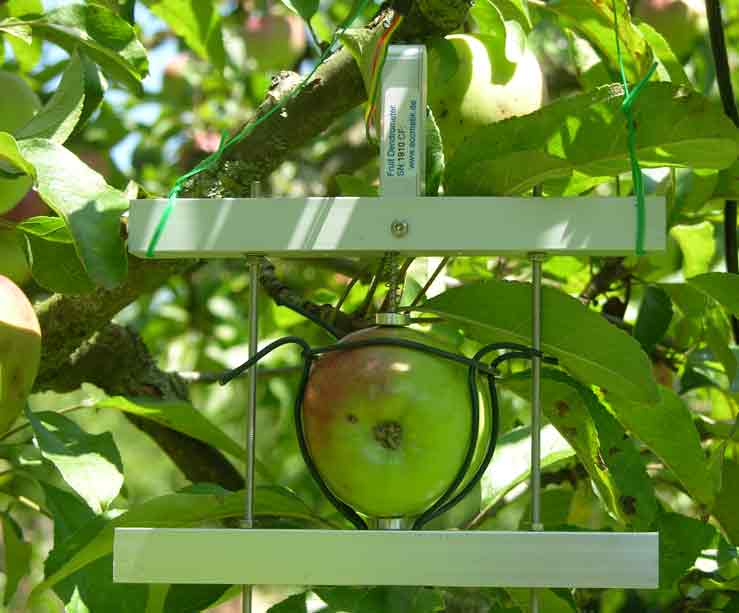

dendrometer apple

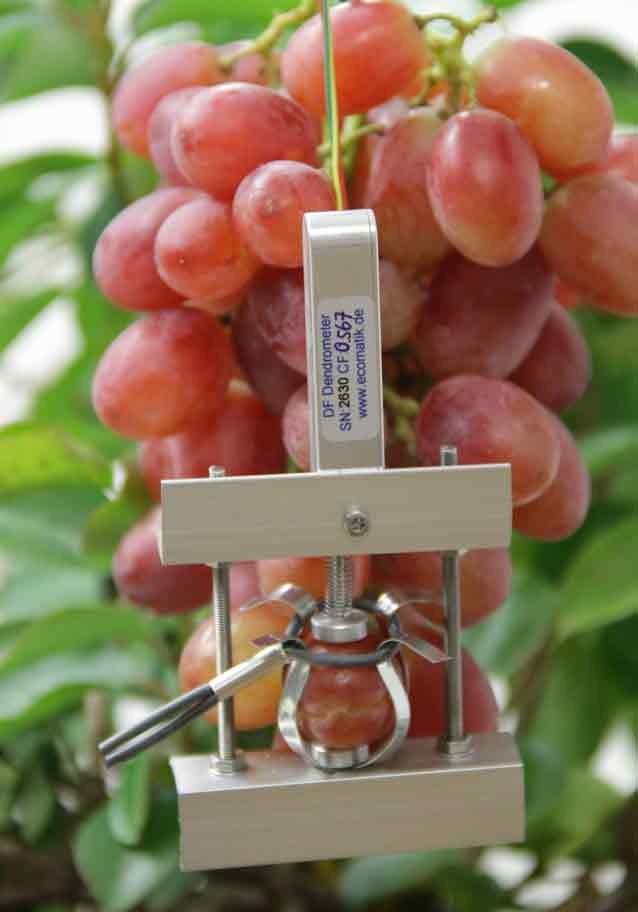

dendrometer grape

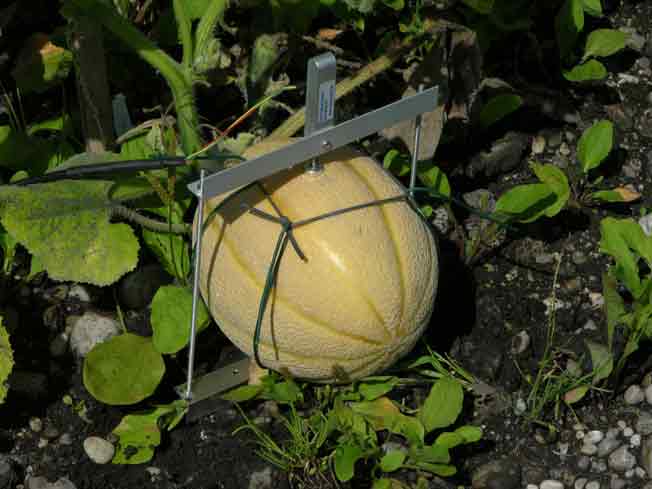

dendrometer melon

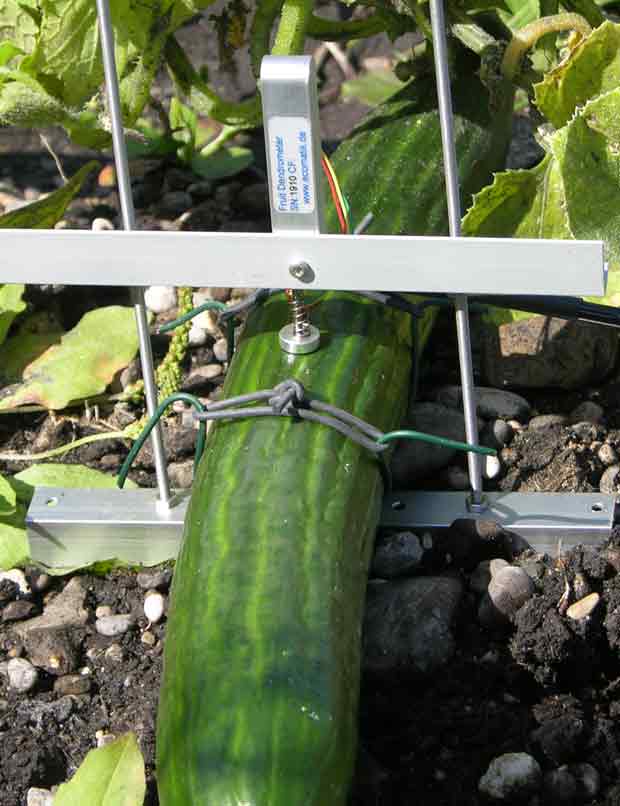

dendrometer cucumber
