Data Logger System

We supply various data loggers including all operational components: logger enclosure, battery, solar power systems, data transfer via radio modem. The following is a selection of available data logger.

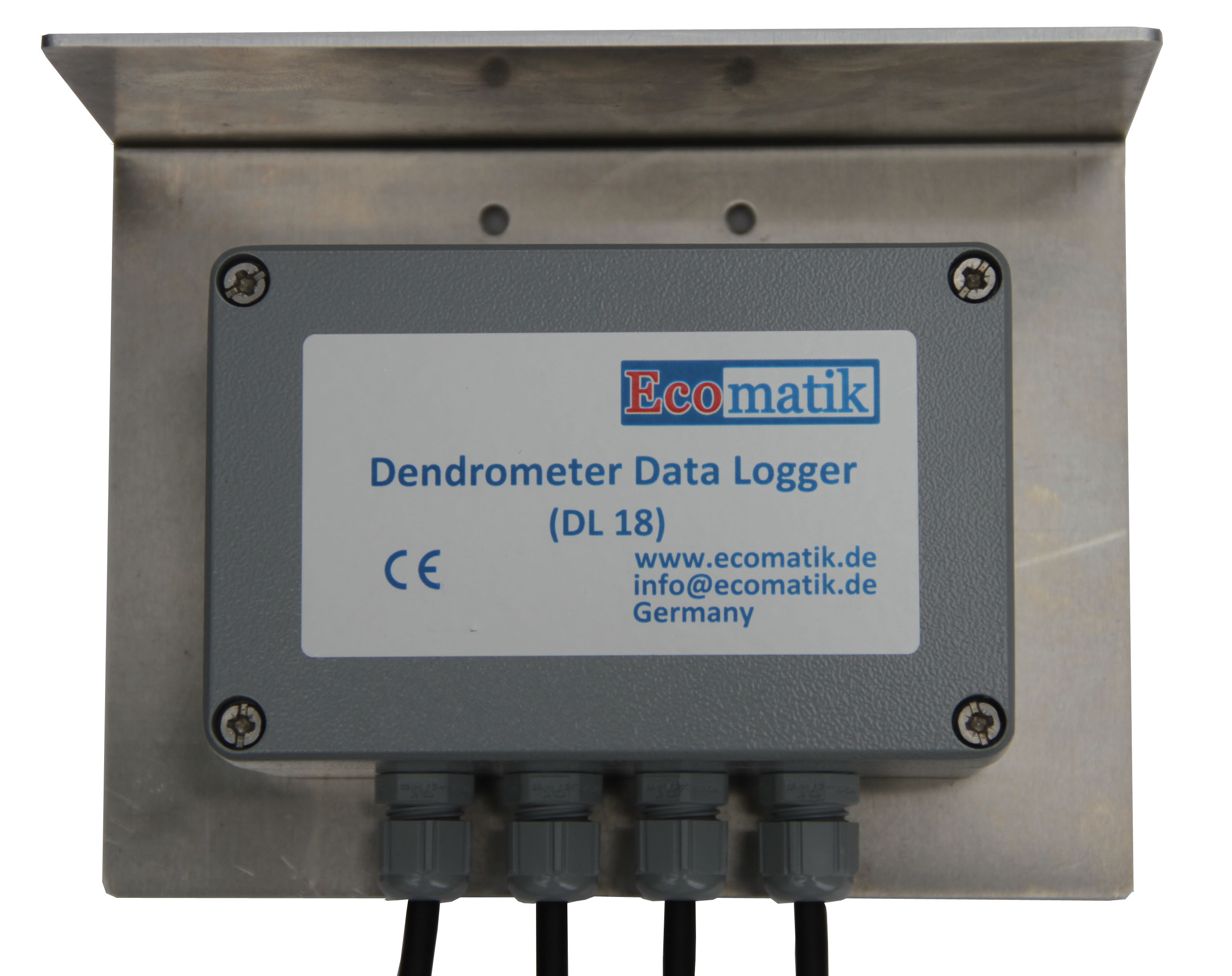

Dendrometer Logger (DL18)

Suitable for connecting 1-4 dendrometers, effects of temperature compensated, 16 bits, resolution 0.2-0.5 µm (denpendent on dendrometer types), RAM for 1 900 000 data storage (enough for one year measurement with  4 dendrometers, 1 min. measuring interval), , USB port, an internal battery lasts for more than 1 year measurement. Ideal for long-term measurement with dendrometer.

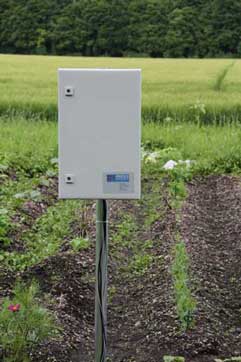

Supplied with a weather box and protective roof.

CR1000 Logger

Suitable for connecting Equitensiometer, Dendrometer, Sap Flow Sensors. 13 bits, 4 MB SRAM, RS232 Interface, 16 single-ended / 8 differential channels, expandable to over 100 channels with Mutiplexer.

Programming and support for specific applications.

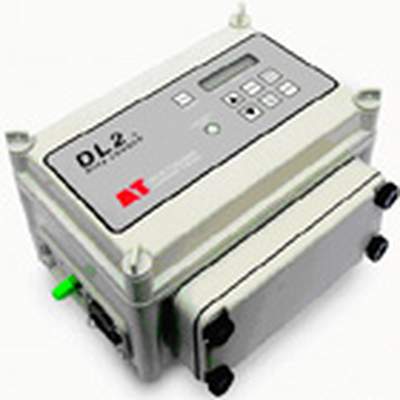

DL2e Logger

Suitable for connecting Equitensiometer, Dendrometer, Sap Flow Sensors. 12 bits, 128 KB RAM, RS232 interface, 30 single-ended/15 differential channels, expandable to up to 60 channels

Programming and support for specific applications.

Combi Logger

Suitable for connecting Equitensiometer, Dendrometer, Sap Flow Sensors. 16 bits, 256 KB RAM, RS232 interface, 8 differential channels.
Programming and support for specific applications.

GP1 Logger

Suitable for connecting Equitensiometer, Dendrometer, 2 channels, RS232 Interface
Programming and support for specific applications.
