Circumference Dendrometer 2 (DC2) and Circumference Dendrometer 3 (DC3)

The DC2 and DC3 are the improved version of the DC1. The tension is not applied in a tangential, but in the radial direction. The pressure of the wire cable to the tree is independent of tree size. The data of different tree sizes are comparable.
The sensor is mounted on a wire cable with very low thermal expansion coefficient at tree. The slide rings reduce the friction between the wire cable and the tree bark. They also decrease the pressure on the tree.

The DC2 and DC3 differs only in its range. DC3 has a larger range. For fast-growing trees, the DC3 is more appropriate.

Please note the essential difference between the various circumference dendrometers.



Advantages

■ Suitable for all tree sizes (> 5 cm)

■ Pressure of the wire cable to the tree independent of tree size

■ Automatic adjustment of the tension, sensitive measurements even with very large trees

■ No injury to plants

■ Stability against wind, snow, falling small branches and small fruits

■ Easy installation

■ Easy adjustment by the integrated turnbuckle



Disadvantages

■ The data must be converted (free Excel program available)

■ The tree must be roughly circular



Delivery

■ Complete with 5 m cable and 1 m wire cable



Options / Ordering Information

■ Cable extension (please specify in meters)

■ Extension of the wire cable (please specify in meters)

 ■ Free Excel program for data conversion

■ Data Logger



Technical specifications

Name Circumference Dendrometer 2 (DC2) Circumference Dendrometer 3 (DC3)
Suitable for tree size Diameter>5 cm Diameter>5 cm
Range of the sensor 15 mm 25 mm
Range of dendrometer
       With reset unlimited unlimited
       Without reset
      for tree diameter of
               10 cm
                50 cm
              100 cm

9.9 mm in Diameter
6.6 mm in Diameter
5.2 mm in Diameter

16.2 mm in Diameter
11.3 mm in Diameter
9.0  mm in Diameter
Accuracy ±2 µm ± 0.12% (CR1000 Logger) ±3.3 µm ±0.12% (CR1000 Logger)
Resolution 0.3-3.6 µm (dependent on used data logger) 0.4-.6 µm (dependent on used data logger)
Linearity 2% 0.7%
Thermal expansion coefficient of the wire cable <1,4 ×10-6/K
Thermal expansion coefficient of the sensor <0,1 µm/K
Operating conditions Air temperature: -30 - 40° C, air humidity: 0-100%





   dendrometer dc2

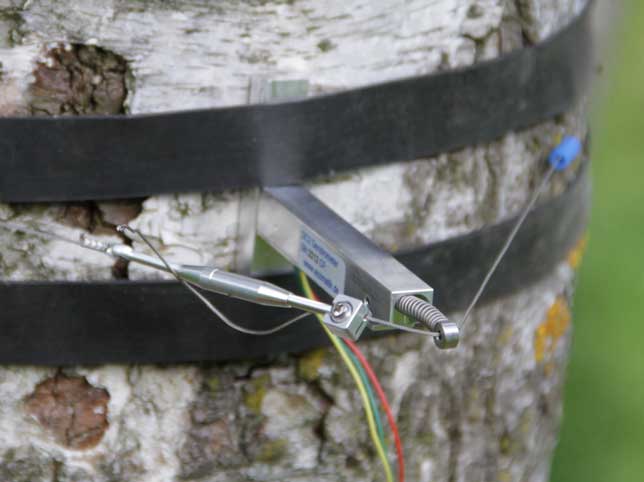

DC2

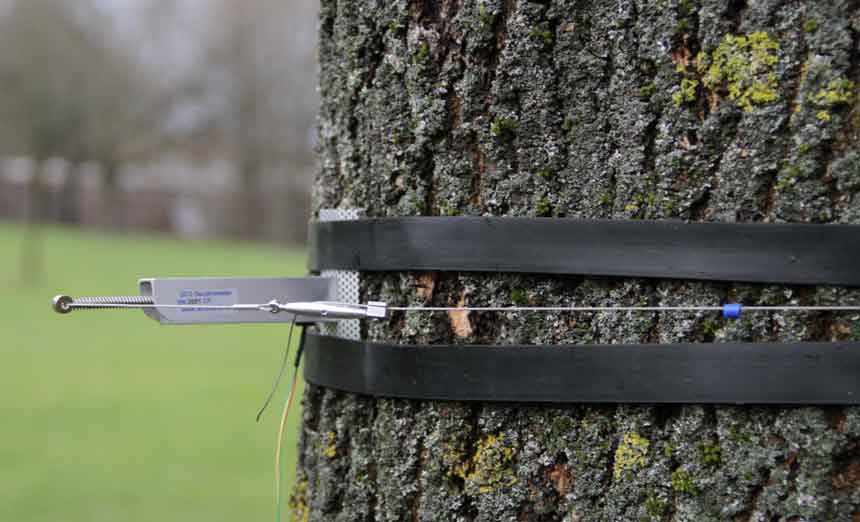

DC3

DC3
